Barjas

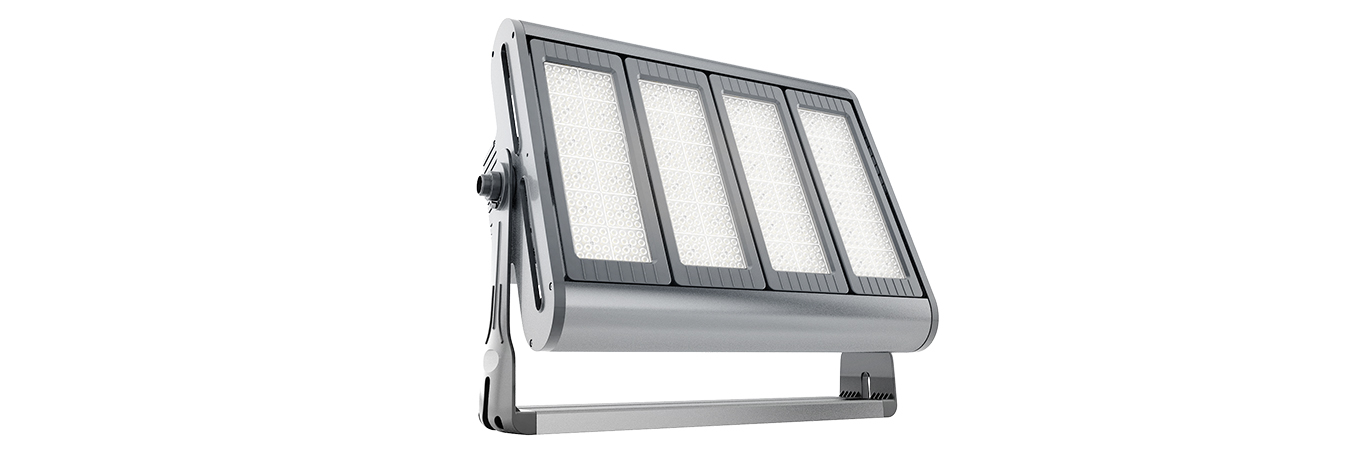

High Mast Light

Industrial

Surfacesidewall mounted

Description

High-mast LED Light series uses high quality from international brands, providing excellent lumen output, long-lasting stability and splendid sight.

Using high-end LED driver with long lifespan, Provide 5 years warranty on luminaire.

Excellent thermal management system and heat radiation enable the LEDs consistently work cooler, providing significant boosts to lifetime and efficacy.

Corrosion resistant aluminum housing, multiple fins heatsink, creates better thermal conductivity, ensure long lifespan of LED.

Quality tempered glasses diffuser with high transmit-trance luminous effects with higher uniformity.

Share

Family Technical Data

Model Power CCT CRI IP Beam Angle Controls and Dimming Luminous flux Color
PR-HML-BAR300-01-016736 300 W 4000 70 65 15 not dimmable 32490 lm Silver
PR-HML-BAR300-01-016737 300 W 4000 70 65 30 not dimmable 32490 lm Silver
PR-HML-BAR300-01-016738 300 W 4000 70 65 60 not dimmable 32490 lm Silver
PR-HML-BAR300-01-016739 300 W 4000 70 65 15 not dimmable 32490 lm Black
PR-HML-BAR300-01-016740 300 W 4000 70 65 30 not dimmable 32490 lm Black
PR-HML-BAR300-01-016741 300 W 4000 70 65 60 not dimmable 32490 lm Black
PR-HML-BAR300-01-016742 300 W 4000 80 65 15 not dimmable 29241 lm Silver
PR-HML-BAR300-01-016743 300 W 4000 80 65 30 not dimmable 29241 lm Silver
PR-HML-BAR300-01-016744 300 W 4000 80 65 60 not dimmable 29241 lm Silver
PR-HML-BAR300-01-016745 300 W 4000 80 65 15 not dimmable 29241 lm Black
PR-HML-BAR300-01-016746 300 W 4000 80 65 30 not dimmable 29241 lm Black
PR-HML-BAR300-01-016747 300 W 4000 80 65 60 not dimmable 29241 lm Black
PR-HML-BAR300-01-016748 300 W 5700 70 65 15 not dimmable 40000 lm Silver
PR-HML-BAR300-01-016749 300 W 5700 70 65 30 not dimmable 40000 lm Silver
PR-HML-BAR300-01-016750 300 W 5700 70 65 60 not dimmable 40000 lm Silver
PR-HML-BAR300-01-016751 300 W 5700 70 65 15 not dimmable 40000 lm Black
PR-HML-BAR300-01-016752 300 W 5700 70 65 30 not dimmable 40000 lm Black
PR-HML-BAR300-01-016753 300 W 5700 70 65 60 not dimmable 40000 lm Black
PR-HML-BAR300-01-016754 300 W 5700 80 65 15 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016755 300 W 5700 80 65 30 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016756 300 W 5700 80 65 60 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016757 300 W 5700 80 65 15 not dimmable 36000 lm Black
PR-HML-BAR300-01-016758 300 W 5700 80 65 30 not dimmable 36000 lm Black
PR-HML-BAR300-01-016759 300 W 5700 80 65 60 not dimmable 36000 lm Black
PR-HML-BAR300-01-016760 300 W 6500 70 65 15 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016761 300 W 6500 70 65 30 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016762 300 W 6500 70 65 60 not dimmable 36000 lm Silver
PR-HML-BAR300-01-016763 300 W 6500 70 65 15 not dimmable 36000 lm Black
PR-HML-BAR300-01-016764 300 W 6500 70 65 30 not dimmable 36000 lm Black
PR-HML-BAR300-01-016765 300 W 6500 70 65 60 not dimmable 36000 lm Black
PR-HML-BAR300-01-016766 300 W 6500 80 65 15 not dimmable 32400 lm Silver
PR-HML-BAR300-01-016767 300 W 6500 80 65 30 not dimmable 32400 lm Silver
PR-HML-BAR300-01-016768 300 W 6500 80 65 60 not dimmable 32400 lm Silver
PR-HML-BAR300-01-016769 300 W 6500 80 65 15 not dimmable 32400 lm Black
PR-HML-BAR300-01-016770 300 W 6500 80 65 30 not dimmable 32400 lm Black
PR-HML-BAR300-01-016771 300 W 6500 80 65 60 not dimmable 32400 lm Black

Model Power CCT CRI IP Beam Angle Controls and Dimming Luminous flux Color
PR-HML-BAR480-02-016772 480 W 4000 70 65 15 not dimmable 54150 lm Silver
PR-HML-BAR480-02-016773 480 W 4000 70 65 30 not dimmable 54150 lm Silver
PR-HML-BAR480-02-016774 480 W 4000 70 65 60 not dimmable 54150 lm Silver
PR-HML-BAR480-02-016775 480 W 4000 70 65 15 not dimmable 54150 lm Black
PR-HML-BAR480-02-016776 480 W 4000 70 65 30 not dimmable 54150 lm Black
PR-HML-BAR480-02-016777 480 W 4000 70 65 60 not dimmable 54150 lm Black
PR-HML-BAR480-02-016778 480 W 4000 80 65 15 not dimmable 48735 lm Silver
PR-HML-BAR480-02-016779 480 W 4000 80 65 30 not dimmable 48735 lm Silver
PR-HML-BAR480-02-016780 480 W 4000 80 65 60 not dimmable 48735 lm Silver
PR-HML-BAR480-02-016781 480 W 4000 80 65 15 not dimmable 48735 lm Black
PR-HML-BAR480-02-016782 480 W 4000 80 65 30 not dimmable 48735 lm Black
PR-HML-BAR480-02-016783 480 W 4000 80 65 60 not dimmable 48735 lm Black
PR-HML-BAR480-02-016784 480 W 5700 70 65 15 not dimmable 66667 lm Silver
PR-HML-BAR480-02-016785 480 W 5700 70 65 30 not dimmable 66667 lm Silver
PR-HML-BAR480-02-016786 480 W 5700 70 65 60 not dimmable 66667 lm Silver
PR-HML-BAR480-02-016787 480 W 5700 70 65 15 not dimmable 66667 lm Black
PR-HML-BAR480-02-016788 480 W 5700 70 65 30 not dimmable 66667 lm Black
PR-HML-BAR480-02-016789 480 W 5700 70 65 60 not dimmable 66667 lm Black
PR-HML-BAR480-02-016790 480 W 5700 80 65 15 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016791 480 W 5700 80 65 30 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016792 480 W 5700 80 65 60 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016793 480 W 5700 80 65 15 not dimmable 60000 lm Black
PR-HML-BAR480-02-016794 480 W 5700 80 65 30 not dimmable 60000 lm Black
PR-HML-BAR480-02-016795 480 W 5700 80 65 60 not dimmable 60000 lm Black
PR-HML-BAR480-02-016796 480 W 6500 70 65 15 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016797 480 W 6500 70 65 30 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016798 480 W 6500 70 65 60 not dimmable 60000 lm Silver
PR-HML-BAR480-02-016799 480 W 6500 70 65 15 not dimmable 60000 lm Black
PR-HML-BAR480-02-016800 480 W 6500 70 65 30 not dimmable 60000 lm Black
PR-HML-BAR480-02-016801 480 W 6500 70 65 60 not dimmable 60000 lm Black
PR-HML-BAR480-02-016802 480 W 6500 80 65 15 not dimmable 54000 lm Silver
PR-HML-BAR480-02-016803 480 W 6500 80 65 30 not dimmable 54000 lm Silver
PR-HML-BAR480-02-016804 480 W 6500 80 65 60 not dimmable 54000 lm Silver
PR-HML-BAR480-02-016805 480 W 6500 80 65 15 not dimmable 54000 lm Black
PR-HML-BAR480-02-016806 480 W 6500 80 65 30 not dimmable 54000 lm Black
PR-HML-BAR480-02-016807 480 W 6500 80 65 60 not dimmable 54000 lm Black

Model Power CCT CRI IP Beam Angle Controls and Dimming Luminous flux Color
PR-HML-BAR960-03-016808 960 W 4000 70 65 15 not dimmable 108300 lm Silver
PR-HML-BAR960-03-016809 960 W 4000 70 65 30 not dimmable 108300 lm Silver
PR-HML-BAR960-03-016810 960 W 4000 70 65 60 not dimmable 108300 lm Silver
PR-HML-BAR960-03-016811 960 W 4000 70 65 15 not dimmable 108300 lm Black
PR-HML-BAR960-03-016812 960 W 4000 70 65 30 not dimmable 108300 lm Black
PR-HML-BAR960-03-016813 960 W 4000 70 65 60 not dimmable 108300 lm Black
PR-HML-BAR960-03-016814 960 W 4000 80 65 15 not dimmable 97470 lm Silver
PR-HML-BAR960-03-016815 960 W 4000 80 65 30 not dimmable 97470 lm Silver
PR-HML-BAR960-03-016816 960 W 4000 80 65 60 not dimmable 97470 lm Silver
PR-HML-BAR960-03-016817 960 W 4000 80 65 15 not dimmable 97470 lm Black
PR-HML-BAR960-03-016818 960 W 4000 80 65 30 not dimmable 97470 lm Black
PR-HML-BAR960-03-016819 960 W 4000 80 65 60 not dimmable 97470 lm Black
PR-HML-BAR960-03-016820 960 W 5700 70 65 15 not dimmable 133333 lm Silver
PR-HML-BAR960-03-016821 960 W 5700 70 65 30 not dimmable 133333 lm Silver
PR-HML-BAR960-03-016822 960 W 5700 70 65 60 not dimmable 133333 lm Silver
PR-HML-BAR960-03-016823 960 W 5700 70 65 15 not dimmable 133333 lm Black
PR-HML-BAR960-03-016824 960 W 5700 70 65 30 not dimmable 133333 lm Black
PR-HML-BAR960-03-016825 960 W 5700 70 65 60 not dimmable 133333 lm Black
PR-HML-BAR960-03-016826 960 W 5700 80 65 15 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016827 960 W 5700 80 65 30 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016828 960 W 5700 80 65 60 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016829 960 W 5700 80 65 15 not dimmable 120000 lm Black
PR-HML-BAR960-03-016830 960 W 5700 80 65 30 not dimmable 120000 lm Black
PR-HML-BAR960-03-016831 960 W 5700 80 65 60 not dimmable 120000 lm Black
PR-HML-BAR960-03-016832 960 W 6500 70 65 15 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016833 960 W 6500 70 65 30 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016834 960 W 6500 70 65 60 not dimmable 120000 lm Silver
PR-HML-BAR960-03-016835 960 W 6500 70 65 15 not dimmable 120000 lm Black
PR-HML-BAR960-03-016836 960 W 6500 70 65 30 not dimmable 120000 lm Black
PR-HML-BAR960-03-016837 960 W 6500 70 65 60 not dimmable 120000 lm Black
PR-HML-BAR960-03-016838 960 W 6500 80 65 15 not dimmable 108000 lm Silver
PR-HML-BAR960-03-016839 960 W 6500 80 65 30 not dimmable 108000 lm Silver
PR-HML-BAR960-03-016840 960 W 6500 80 65 60 not dimmable 108000 lm Silver
PR-HML-BAR960-03-016841 960 W 6500 80 65 15 not dimmable 108000 lm Black
PR-HML-BAR960-03-016842 960 W 6500 80 65 30 not dimmable 108000 lm Black
PR-HML-BAR960-03-016843 960 W 6500 80 65 60 not dimmable 108000 lm Black


Application

Highways, Exhibition halls , Gymnasium, Sport Courts, Football stadiums, Building lighting, outdoor light applications
