Anmar

Panel Light

Offices & Healthcare

Pendant

Description

Intelligent Transparency Indirect/Direct (40% up light 2400lm and 60% downlight 3600lm).

Elegant design efficiency of more than 120lm/w.

Optimal glare control.

Uniform illumination, direct and indirect light.

Illusion of zero Gravity

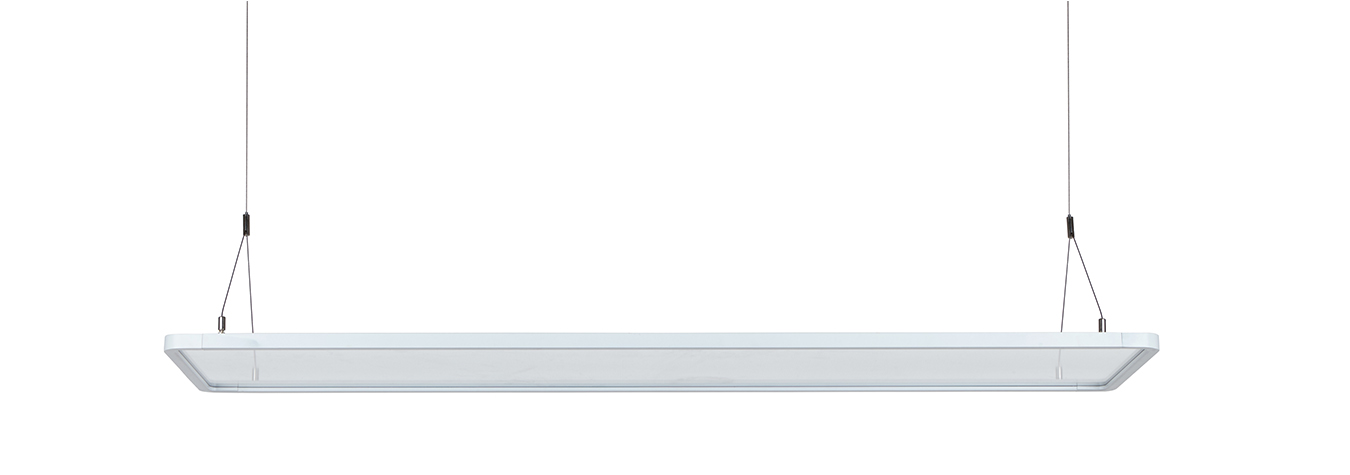

The pendant LED luminaire Transparency seems to be made of two states: when off there is just

A18mm visible slim frame and a transparent panel, turned on it becomes a light statement in

The room, minimalist and clear-cut.

The transparent nature of the material allows the creation of a light and transparent architecture.

Since the luminaire does not superimpose the language of architecture, interiors retain their originally

planned autonomy, when switched on, the luminaire allows spaces to be deliberately re-interpreted.

Available CCT. 2700-6500

Ultra-slim and streamlined appearance makes the floating square luminaire highly meets the aesthetic indoor lighting design.

Transparent LGP and round corners could also enhance the spatial experience.

Available in two shape round corner, straight corner with both direct and indirect light distribution, the luminaire could create a pleasant ambience. The adjustable light distribution ratio makes it satisfy the various demands of modern office lighting.

Share

Family Technical Data

Model Power CCT CRI IP Beam Angle Controls and Dimming Luminous flux Color
PR-PL-ANM50-02-012258 50 W 6000 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-02-012259 50 W 6000 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012260 50 W 6000 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012261 50 W 6000 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012262 50 W 6000 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012263 50 W 6000 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012264 50 W 5500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-02-012265 50 W 5500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012266 50 W 5500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012267 50 W 5500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012268 50 W 5500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012269 50 W 5500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012270 50 W 5000 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-02-012271 50 W 5000 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-02-012272 50 W 5000 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-02-012273 50 W 5000 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-02-012274 50 W 5000 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-02-012275 50 W 5000 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-02-012276 50 W 4500 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-02-012277 50 W 4500 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-02-012278 50 W 4500 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-02-012279 50 W 4500 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-02-012280 50 W 4500 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-02-012281 50 W 4500 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-02-012282 50 W 4000 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-02-012283 50 W 4000 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-02-012284 50 W 4000 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-02-012285 50 W 4000 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-02-012286 50 W 4000 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-02-012287 50 W 4000 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-02-012288 50 W 3500 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-02-012289 50 W 3500 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-02-012290 50 W 3500 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-02-012291 50 W 3500 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-02-012292 50 W 3500 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-02-012293 50 W 3500 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-02-012294 50 W 2700 90 20 110 not dimmable 4192 lm Black
PR-PL-ANM50-02-012295 50 W 2700 90 20 110 not dimmable 4192 lm Silver
PR-PL-ANM50-02-012296 50 W 2700 90 20 110 not dimmable 4192 lm White
PR-PL-ANM50-02-012297 50 W 2700 80 20 110 not dimmable 4990 lm Black
PR-PL-ANM50-02-012298 50 W 2700 80 20 110 not dimmable 4990 lm Silver
PR-PL-ANM50-02-012299 50 W 2700 80 20 110 not dimmable 4990 lm White
PR-PL-ANM50-02-012300 50 W 6500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-02-012301 50 W 6500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012302 50 W 6500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012303 50 W 6500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012304 50 W 6500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012305 50 W 6500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012306 50 W 6000 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-02-012307 50 W 6000 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012308 50 W 6000 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012309 50 W 6000 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012310 50 W 6000 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012311 50 W 6000 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012312 50 W 5500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-02-012313 50 W 5500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012314 50 W 5500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012315 50 W 5500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012316 50 W 5500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012317 50 W 5500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012318 50 W 5000 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-02-012319 50 W 5000 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-02-012320 50 W 5000 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-02-012321 50 W 5000 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-02-012322 50 W 5000 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-02-012323 50 W 5000 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-02-012324 50 W 4500 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-02-012325 50 W 4500 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-02-012326 50 W 4500 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-02-012327 50 W 4500 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-02-012328 50 W 4500 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-02-012329 50 W 4500 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-02-012330 50 W 4000 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-02-012331 50 W 4000 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-02-012332 50 W 4000 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-02-012333 50 W 4000 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-02-012334 50 W 4000 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-02-012335 50 W 4000 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-02-012336 50 W 3500 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-02-012337 50 W 3500 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-02-012338 50 W 3500 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-02-012339 50 W 3500 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-02-012340 50 W 3500 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-02-012341 50 W 3500 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-02-012342 50 W 3000 90 20 110 not dimmable 4321 lm Black
PR-PL-ANM50-02-012343 50 W 3000 90 20 110 not dimmable 4321 lm Silver
PR-PL-ANM50-02-012344 50 W 3000 90 20 110 not dimmable 4321 lm White
PR-PL-ANM50-02-012345 50 W 3000 80 20 110 not dimmable 5144 lm Black
PR-PL-ANM50-02-012346 50 W 3000 80 20 110 not dimmable 5144 lm Silver
PR-PL-ANM50-02-012347 50 W 3000 80 20 110 not dimmable 5144 lm White
PR-PL-ANM50-02-012348 50 W 2700 90 20 110 not dimmable 4192 lm Black
PR-PL-ANM50-02-012349 50 W 2700 90 20 110 not dimmable 4192 lm Silver
PR-PL-ANM50-02-012350 50 W 2700 90 20 110 not dimmable 4192 lm White
PR-PL-ANM50-02-012351 50 W 2700 80 20 110 not dimmable 4990 lm Black
PR-PL-ANM50-02-012352 50 W 2700 80 20 110 not dimmable 4990 lm Silver
PR-PL-ANM50-02-012353 50 W 2700 80 20 110 not dimmable 4990 lm White
PR-PL-ANM50-02-012354 50 W 6500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-02-012355 50 W 6500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-02-012356 50 W 6500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-02-012357 50 W 6500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-02-012358 50 W 6500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-02-012359 50 W 6500 90 20 110 not dimmable 5040 lm Black

Model Power CCT CRI IP Beam Angle Controls and Dimming Luminous flux Color
PR-PL-ANM50-01-012360 50 W 6500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012361 50 W 6500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012362 50 W 6500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012363 50 W 6500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012364 50 W 6500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012365 50 W 6500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012366 50 W 6000 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012367 50 W 6000 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012368 50 W 6000 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012369 50 W 6000 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012370 50 W 6000 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012371 50 W 6000 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012372 50 W 5500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012373 50 W 5500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012374 50 W 5500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012375 50 W 5500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012376 50 W 5500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012377 50 W 5500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012378 50 W 5000 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-01-012379 50 W 5000 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-01-012380 50 W 5000 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-01-012381 50 W 5000 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-01-012382 50 W 5000 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-01-012383 50 W 5000 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-01-012384 50 W 4500 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-01-012385 50 W 4500 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-01-012386 50 W 4500 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-01-012387 50 W 4500 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-01-012388 50 W 4500 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-01-012389 50 W 4500 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-01-012390 50 W 4000 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-01-012391 50 W 4000 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-01-012392 50 W 4000 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-01-012393 50 W 4000 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-01-012394 50 W 4000 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-01-012395 50 W 4000 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-01-012396 50 W 3500 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-01-012397 50 W 3500 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-01-012398 50 W 3500 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-01-012399 50 W 3500 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-01-012400 50 W 3500 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-01-012401 50 W 3500 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-01-012402 50 W 3000 90 20 110 not dimmable 4321 lm Black
PR-PL-ANM50-01-012403 50 W 3000 90 20 110 not dimmable 4321 lm Silver
PR-PL-ANM50-01-012404 50 W 3000 90 20 110 not dimmable 4321 lm White
PR-PL-ANM50-01-012405 50 W 3000 80 20 110 not dimmable 5144 lm Black
PR-PL-ANM50-01-012406 50 W 3000 80 20 110 not dimmable 5144 lm Silver
PR-PL-ANM50-01-012407 50 W 3000 80 20 110 not dimmable 5144 lm White
PR-PL-ANM50-01-012408 50 W 2700 90 20 110 not dimmable 4192 lm Black
PR-PL-ANM50-01-012409 50 W 2700 90 20 110 not dimmable 4192 lm Silver
PR-PL-ANM50-01-012410 50 W 2700 90 20 110 not dimmable 4192 lm White
PR-PL-ANM50-01-012411 50 W 2700 80 20 110 not dimmable 4990 lm Black
PR-PL-ANM50-01-012412 50 W 2700 80 20 110 not dimmable 4990 lm Silver
PR-PL-ANM50-01-012413 50 W 2700 80 20 110 not dimmable 4990 lm White
PR-PL-ANM50-01-012414 50 W 6500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012415 50 W 6500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012416 50 W 6500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012417 50 W 6500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012418 50 W 6500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012419 50 W 6500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012420 50 W 6000 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012421 50 W 6000 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012422 50 W 6000 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012423 50 W 6000 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012424 50 W 6000 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012425 50 W 6000 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012426 50 W 5500 90 20 110 not dimmable 5040 lm Black
PR-PL-ANM50-01-012427 50 W 5500 90 20 110 not dimmable 5040 lm Silver
PR-PL-ANM50-01-012428 50 W 5500 90 20 110 not dimmable 5040 lm White
PR-PL-ANM50-01-012429 50 W 5500 80 20 110 not dimmable 6000 lm Black
PR-PL-ANM50-01-012430 50 W 5500 80 20 110 not dimmable 6000 lm Silver
PR-PL-ANM50-01-012431 50 W 5500 80 20 110 not dimmable 6000 lm White
PR-PL-ANM50-01-012432 50 W 5000 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-01-012433 50 W 5000 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-01-012434 50 W 5000 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-01-012435 50 W 5000 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-01-012436 50 W 5000 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-01-012437 50 W 5000 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-01-012438 50 W 4500 90 20 110 not dimmable 4788 lm Black
PR-PL-ANM50-01-012439 50 W 4500 90 20 110 not dimmable 4788 lm Silver
PR-PL-ANM50-01-012440 50 W 4500 90 20 110 not dimmable 4788 lm White
PR-PL-ANM50-01-012441 50 W 4500 80 20 110 not dimmable 5700 lm Black
PR-PL-ANM50-01-012442 50 W 4500 80 20 110 not dimmable 5700 lm Silver
PR-PL-ANM50-01-012443 50 W 4500 80 20 110 not dimmable 5700 lm White
PR-PL-ANM50-01-012444 50 W 4000 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-01-012445 50 W 4000 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-01-012446 50 W 4000 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-01-012447 50 W 4000 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-01-012448 50 W 4000 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-01-012449 50 W 4000 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-01-012450 50 W 3500 90 20 110 not dimmable 4549 lm Black
PR-PL-ANM50-01-012451 50 W 3500 90 20 110 not dimmable 4549 lm Silver
PR-PL-ANM50-01-012452 50 W 3500 90 20 110 not dimmable 4549 lm White
PR-PL-ANM50-01-012453 50 W 3500 80 20 110 not dimmable 5415 lm Black
PR-PL-ANM50-01-012454 50 W 3500 80 20 110 not dimmable 5415 lm Silver
PR-PL-ANM50-01-012455 50 W 3500 80 20 110 not dimmable 5415 lm White
PR-PL-ANM50-01-012456 50 W 3000 90 20 110 not dimmable 4321 lm Black
PR-PL-ANM50-01-012457 50 W 3000 90 20 110 not dimmable 4321 lm Silver
PR-PL-ANM50-01-012458 50 W 3000 90 20 110 not dimmable 4321 lm White
PR-PL-ANM50-01-012459 50 W 3000 80 20 110 not dimmable 5144 lm Black
PR-PL-ANM50-01-012460 50 W 3000 80 20 110 not dimmable 5144 lm Silver
PR-PL-ANM50-01-012461 50 W 3000 80 20 110 not dimmable 5144 lm White
PR-PL-ANM50-01-012462 50 W 2700 90 20 110 not dimmable 4192 lm Black
PR-PL-ANM50-01-012463 50 W 2700 90 20 110 not dimmable 4192 lm Silver
PR-PL-ANM50-01-012464 50 W 2700 90 20 110 not dimmable 4192 lm White
PR-PL-ANM50-01-012465 50 W 2700 80 20 110 not dimmable 4990 lm Black
PR-PL-ANM50-01-012466 50 W 2700 80 20 110 not dimmable 4990 lm Silver
PR-PL-ANM50-01-012467 50 W 2700 80 20 110 not dimmable 4990 lm White


Application

Offices, Schools, Showrooms, Government institutions, Reception , Open area

Comfortlife

Search light
Flash light
mosquito killer
Rechargeable batteries
Touch screen
Bulb
Solar Flood Light
Power extensions
Camping light
Table Lamp
Strip light
Solar Light

Premium

Hospitality
Fashion & Retail
Offices & Healthcare
Industrial
Outdoor
Street Light
Façade Lighting

E-Series

Spotlight
Tube Light
Down Light
Floodlight
Candle light
Panel Light
Recessed Panel Downlight
Surface Panel Downlight

CIRCLE PANAL Down light
High Bay
Ceiling Light
Street Light
Strip light
Batten Light
Bulb
Bulkhead
Mirror Light
Tri-Proof

Thuraia

Pendant Light
Wall light
Floor Lamp
Ceiling Light

Electric

Power Extension Sockets
Plug
Wiring Device

LED Screen

Projects

Hospitality
Offices & Healthcare
Outdoor
Street Light
Fashion & Retail
Façade Lighting

About

Home Page
About us
Agents
Articles
Contact Us

© Copyright 2025 Rafeed - All Rights Reserved

Power By lumytic.com
